Research Reveals Rain Shadows from Saturn’s Rings
A rain of ionized water molecules falls into Saturn’s upper atmosphere from its rings, researchers from England’s University of Leicester have found. Using images from NASA’s Voyager spacecraft and more recent near-infrared observations from the Keck Observatory in Hawaii, it has been found that dark bands seen across Saturn are actually the “rain shadows” of particles from the rings interacting with the planet’s atmosphere, effectively cooling it and reducing heat emissions in those areas.
“Saturn is the first planet to show significant interaction between its atmosphere and ring system,” said James O’Donoghue, the paper’s lead author and a postgraduate researcher at Leicester. “The main effect of ring rain is that it acts to ‘quench’ the ionosphere of Saturn. In other words, this rain severely reduces the electron densities in regions in which it falls.”
In the early 1980s, images from NASA’s Voyager spacecraft showed two to three dark bands on Saturn, and scientists theorized that water could have been showering down into those bands from the rings. Those bands were not seen again until this team observed the planet in near-infrared wavelengths with the W.M Keck Observatory on Mauna Kea, in Hawaii, in April 2011. The effect was difficult to discern because it involves looking for a subtle emission from bright parts of Saturn. It required an instrument like that on Keck, which can split up a large range of light.
The ring rain’s effect occurs in Saturn’s ionosphere, where charged particles are produced when the otherwise neutral atmosphere is exposed to a flow of energetic particles or solar radiation. When the scientists tracked the pattern of emissions of a particular hydrogen ion with three protons (triatomic hydrogen), they expected to see a uniform planet-wide infrared glow. What they observed instead was a series of light and dark bands – with areas of reduced emission corresponding to water-dense portions of Saturn’s rings and areas of high emission corresponding to gaps in the rings.

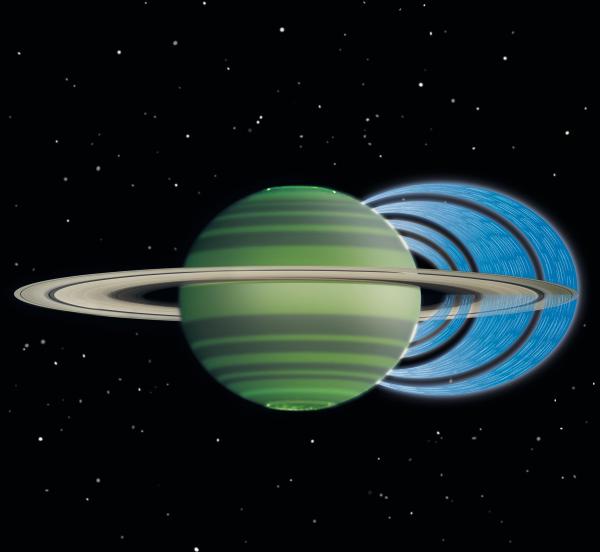

They surmised that charged water particles from the planet’s rings were being drawn towards the planet along Saturn’s magnetic field lines and were neutralizing the glowing triatomic hydrogen ions. This leaves large “shadows” in what would otherwise be a planet-wide infrared glow. These shadows cover some 30 to 43 percent of the planet’s upper atmosphere surface from around 25 to 55 degrees latitude. This is a significantly larger area than suggested by images from NASA’s Voyager mission.
“It turns out that a major driver of Saturn’s ionospheric environment and climate across vast reaches of the planet are ring particles located some 36,000 miles (60,000 kilometers) overhead.”
– Kevin Baines, JPL
Both Earth and Jupiter have an equatorial region that glows very uniformly. Scientists expected this pattern at Saturn, too, but they instead saw dramatic differences at different latitudes.
“Where Jupiter is glowing evenly across its equatorial regions, Saturn has dark bands where the water is falling in, darkening the ionosphere,” said Tom Stallard, a paper co-author at Leicester. “We’re now also trying to investigate these features with an instrument on NASA’s Cassini spacecraft. If we’re successful, Cassini may allow us to view in more detail the way that water is removing ionized particles, such as any changes in the altitude or effects that come with the time of day.”
