A Look Back at Sojourner, the First Rover on Mars

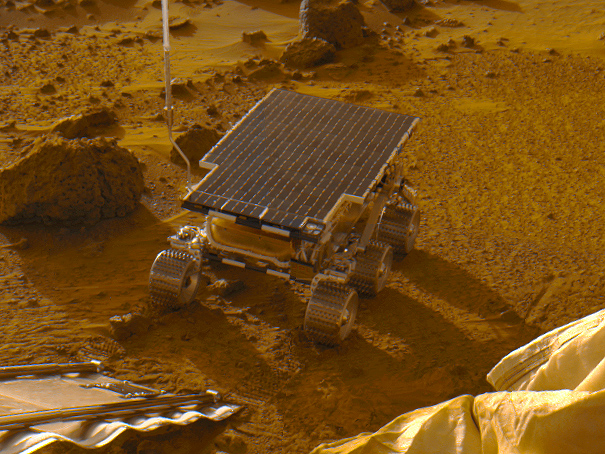

The Sojourner rover on Mars after deployment on July 5, 1997. (NASA/JPL-Caltech)

The 1-foot-high Sojourner rover on Mars after deployment on July 5, 1997. The lander’s deflated air bag can be seen at lower right. (NASA/JPL-Caltech)

The first mission to successfully* send a rover to Mars, NASA’s Mars Pathfinder, launched on Dec. 4, 1996. It was a “budget” Discovery mission designed to demonstrate a low-cost method for delivering a set of science instruments to Mars and sent the first remote-controlled vehicle to be used on another planet. Solar-powered and only a foot in height, the little six-wheeled Sojourner was the foundation for all future Mars rovers…and, along with the Carl Sagan Memorial Station, gave us our best views of the Martian surface since the Viking 1 and 2 landers.

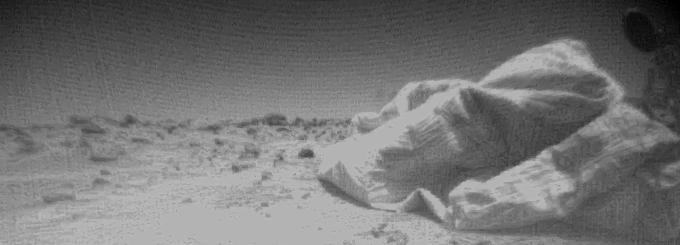

Image from Sojourner on July 6, 1997, looking back toward the lander. (NASA/JPL-Caltech)

Image from Sojourner on July 6, 1997, looking back toward the lander and its deflated air bag. (NASA/JPL-Caltech)

The Mars Pathfinder mission delivered a 23-lb rover (only 8.6 lbs on Mars!) named Sojourner after civil rights crusader Sojourner Truth on the surface of Mars on July 4, 1997. It used an inflatable airbag landing system and an innovative opening-petal design of the lander, dubbed the Carl Sagan Memorial Station. These designs have been used since in various incarnations to land other rovers on Mars. Sojourner spent the next 83 days exploring the Martian terrain around the Station, capturing thousands of images and taking literally millions of chemical, atmospheric, and other scientific measurements.

Thanks to the data collected by Sojourner, researchers were able to determine that the Ares Vallis region where Mars Pathfinder landed was once warm and wet.

The “Presidential Pan” is a full color panorama of the entire Pathfinder landing site in Ares Vallis, seen from the lander’s point of view. Click for a high-resolution version . (NASA/JPL-Caltech)

“If you consider all of the evidence we have at Ares Vallis—the rounded pebbles and cobbles and the possible conglomerate, the abundant sand and dust-sized particles and models for their origins, in addition to the high silica rocks,”  said Dr. Matthew Golombek, Mars Pathfinder project scientist, “it suggests a water-rich planet that may have been more Earth-like than previously recognized, with a warmer and wetter past in which liquid water was stable and the atmosphere was thicker.”

FACT: Mars Pathfinder spotted dust devils on Mars in 1997!

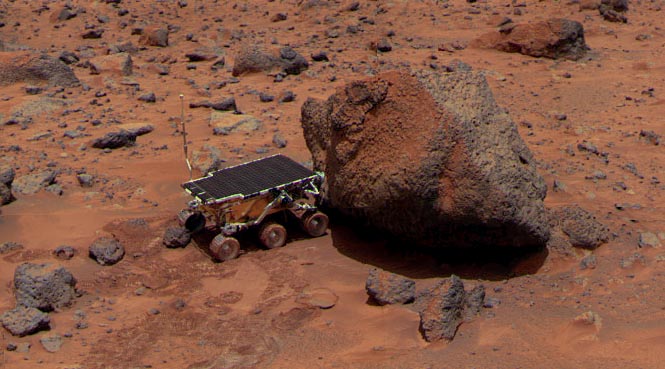

Sojourner investigates a rock named "Yogi Bear" (NASA/JPL-Caltech)

Mosaic image of Sojourner investigating a rock nicknamed “Yogi” (NASA/JPL-Caltech)

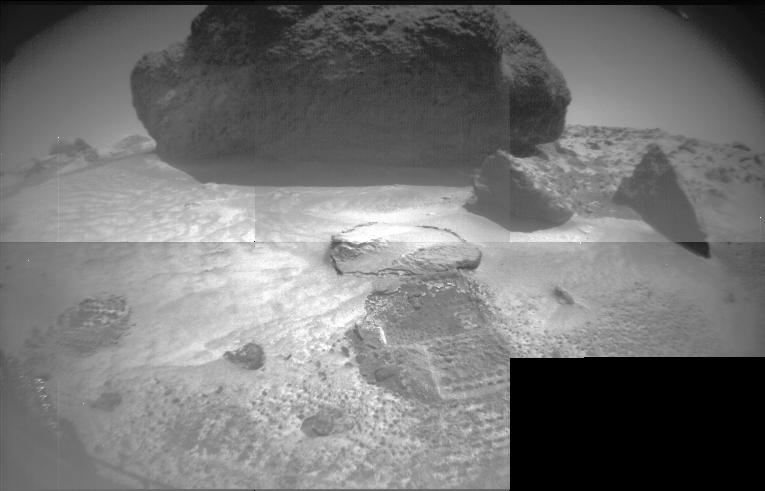

A view of "Yogi" captured by Sojourner. (NASA/JPL-Caltech)

A view of “Yogi Bear” captured by Sojourner. The rover’s tracks are in the foreground. (NASA/JPL-Caltech)

The last successful data transmission cycle from Pathfinder was completed at 3:23 a.m. PDT on September 27, 1997, which was sol 83 of the mission. A final signal without any spacecraft data was received a little over a week later on October 7.

“Sojourner was a good climber, so it would get itself into trouble by climbing onto rocks and need rescuing.” – Dr. Dan Britt, Project Manager for Pathfinder

Although the cause of the loss of communication with the lander may never be known, engineers suspected that depletion of the spacecraft’s battery (which was designed only to last one month) and a subsequent drop in the operating temperature of the spacecraft were to blame.

The Pathfinder mission was a phenomenal success and officially declared concluded on March 10, 1998.

FACT: Sojourner’s control system was built around an Intel 80C85 computer processor with a speed of 100,000 instructions per second and 500kb of RAM!

Both lander and rover well outlived their design lives—the lander by nearly three times, and Sojourner by 12.

The trove of information gathered by the Sojourner rover paved the way for future generations of robotic Mars explorers, from Spirit and Opportunity to Phoenix and eventually the Mars Science Laboratory rover, Curiosity.

Learn more about the Pathfinder mission here and see images from the lander here and the rover here.

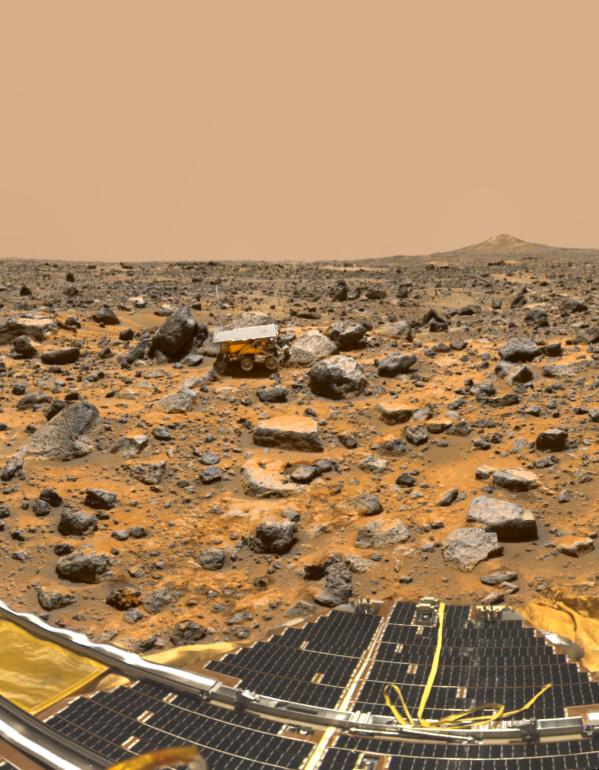

A true-color panorama of Pathfinder's Ares Vallis landing site captured from the Mars Pathfinder lander. The image shows the Pathfinder rover, Sojourner, snuggled against a rock nicknamed Moe. The south peak of two hills, known as Twin Peaks, can be seen on the horizon, about 1 kilometer away. (Credit: NASA/JPL)

A true-color panorama of Pathfinder’s Ares Vallis landing site captured from the Mars Pathfinder lander. The image shows the Pathfinder rover, Sojourner, snuggled against a rock nicknamed Moe. The south peak of two hills, known as Twin Peaks, can be seen on the horizon, about 1 kilometer away. (Credit: NASA/JPL)

A four-panel, true-color mosaic of a sunset on Mars captured from the Pathfinder lander on July 28, 1997. (NASA/JPL-Caltech)

A four-panel, true-color mosaic of a sunset on Mars captured from the Pathfinder lander on July 28, 1997. (NASA/JPL-Caltech)

*NOTE: NASA’s Sojourner was the first Mars rover that worked. The first rovers ever on Mars were the sled-like Prop-Ms, sent aboard the Soviet Mars 2 and 3 spacecraft in 1971. Mars 2 crashed, and Mars 3 ceased communication 15 minutes after landing. Neither ever deployed a rover. Read more here.
