Been Waiting for Hi-Res OSIRIS Images of Rosetta’s Comet? Here They Are!

The boulder-strewn, smooth Hapi region in Comet 67P/Churyumov-Gerasimenko’s neck, with the Hathor cliff face to the right. Credits: ESA/Rosetta/MPS for OSIRIS Team MPS/UPD/LAM/IAA/SSO/INTA/UPM/DASP/IDA

The boulder-strewn, smooth Hapi region in Comet 67P/Churyumov-Gerasimenko’s neck, with the Hathor cliff face to the right. Credits: ESA/Rosetta/MPS for OSIRIS Team MPS/UPD/LAM/IAA/SSO/INTA/UPM/DASP/IDA

Many of the images we have been seeing of Rosetta’s comet – 67P/Churyumov-Gerasimenko, or 67P for short – have been captured with the spacecraft’s NavCam instrument. And while they have been amazingly beautiful in their own right, NavCam isn’t Rosetta’s best camera; that distinction goes to OSIRIS, the Optical, Spectroscopic, and Infrared Remote Imaging System experiment that captures both wide- and narrow-angle high resolution images for scientific study.

Now OSIRIS images of 67P have been few and far between since Rosetta arrived, mostly because the instrument is not run by ESA but rather by the Max Planck Institute for Solar System Research in Germany and a rather large international consortium of research groups, and they have first access to the data and decide when images will become publicly available. While it’s very common in space science to allow time for researchers to work privately with their own data for a period of time before it gets spread around, it can be frustrating for those who know there are fantastic images waiting to be seen (of, say, the surface of a comet) that are just out of reach!

So today the OSIRIS team threw us all a few bones, images that show the surface of 67P in stunning detail that the hardworking but lower-resolution NavCam could never deliver. Above is one, and there are even more below – check ’em out!

Part of a large fracture running across 67P's neck, in particular where it has left Hapi and is extending into Anuket. Credits: ESA/Rosetta/MPS for OSIRIS Team MPS/UPD/LAM/IAA/SSO/INTA/UPM/DASP/IDA

Part of a large fracture running across 67P’s neck, in particular where it has left Hapi and is extending into Anuket. Credits: ESA/Rosetta/MPS for OSIRIS Team MPS/UPD/LAM/IAA/SSO/INTA/UPM/DASP/IDA

A section of the smaller of 67P's two lobes as seen by OSIRIS' narrow-angle camera from a distance of about 8km on October 14, 2014. The resolution is 15 cm/pixel. Credit: ESA/Rosetta/MPS for OSIRIS Team MPS/UPD/LAM/IAA/SSO/INTA/UPM/DASP/IDA

A section of the smaller of 67P’s two lobes as seen by OSIRIS’ narrow-angle camera from a distance of about 8km on October 14, 2014. The resolution is 15 cm/pixel. Credit: ESA/Rosetta/MPS for OSIRIS Team MPS/UPD/LAM/IAA/SSO/INTA/UPM/DASP/IDA

A flat region on 67P's "underside" called Imhotep. Credits: ESA/Rosetta/MPS for OSIRIS Team MPS/UPD/LAM/IAA/SSO/INTA/UPM/DASP/IDA

A flat region on 67P’s “underside” called Imhotep. Credits: ESA/Rosetta/MPS for OSIRIS Team MPS/UPD/LAM/IAA/SSO/INTA/UPM/DASP/IDA

(Hard to believe you’re looking at a comet, isn’t it? This might help remind you…)

Active pit detected in Seth region of 67P. This is an OSIRIS narrow-angle camera image acquired on Aug. 28, 2014 from a distance of 60 km. The image resolution is 1 m/pixel. Enhancing the contrast (right) reveals fine structures in the shadow of the pit, interpreted as jet-like features rising from the pit. Credits: ESA/Rosetta/MPS for OSIRIS Team MPS/UPD/LAM/IAA/SSO/INTA/UPM/DASP/IDA

Active pit detected in Seth region of 67P. This is an OSIRIS narrow-angle camera image acquired on Aug. 28, 2014 from a distance of 60 km. The image resolution is 1 m/pixel. Enhancing the contrast (right) reveals fine structures in the shadow of the pit, interpreted as jet-like features rising from the pit. Credits: ESA/Rosetta/MPS for OSIRIS Team MPS/UPD/LAM/IAA/SSO/INTA/UPM/DASP/IDA

And if you had any doubt that this was indeed an alien world, OSIRIS has found some weird textures on the sides of slops and craters they are nicknaming “goosebumps.” The cause of their formation is not yet known.

Close-up of a curious surface texture nicknamed ‘goosebumps’. The characteristic scale of all the bumps seen on Comet 67P/Churyumov–Gerasimenko by the OSIRIS narrow-angle camera is approximately 3 m. Credit: ESA/Rosetta/MPS for OSIRIS Team MPS/UPD/LAM/IAA/SSO/INTA/UPM/DASP/IDA

Close-up of a curious surface texture nicknamed ‘goosebumps’. The characteristic scale of all the bumps seen on Comet 67P/Churyumov–Gerasimenko by the OSIRIS narrow-angle camera is approximately 3 m. Credit: ESA/Rosetta/MPS for OSIRIS Team MPS/UPD/LAM/IAA/SSO/INTA/UPM/DASP/IDA

Want an idea of the color variation on 67P? Check this one out:

Color-composite of an alcove at the Hathor–Anuket boundary. The surface of the consolidated material in the alcove contains distinct spots of brighter material. On the floor beneath, material 20% brighter and bluer than the surroundings can also be seen (e.g. A and B), and may be evidence of recently exposed ice. The color image was created from the red, green and blue filters (central wavelengths of (882, 700 and 481 nm, respectively) of the OSIRIS narrow-angle camera.

Color-composite of an alcove at the Hathor–Anuket boundary. The surface of the consolidated material in the alcove contains distinct spots of brighter material. On the floor beneath, material 20% brighter and bluer than the surroundings can also be seen (e.g. A and B), and may be evidence of recently exposed ice. The color image was created from the red, green and blue filters (central wavelengths of (882, 700 and 481 nm, respectively) of the OSIRIS narrow-angle camera. Credit: ESA/Rosetta/MPS for OSIRIS Team MPS/UPD/LAM/IAA/SSO/INTA/UPM/DASP/IDA

And if you’re wondering about all the Egyptian names, it’s been decided that regions and features on 67P will be named after ancient Egyptian people and places, following the lead of Rosetta and Philae. See a map below of the regions of the comet:

The 19 regions identified on Comet 67P/Churyumov–Gerasimenko are separated by distinct geomorphological boundaries. Following the ancient Egyptian theme of the Rosetta mission, they are named for Egyptian deities. They are grouped according to the type of terrain dominant within each region. Five basic categories of terrain type have been determined: dust-covered (Ma’at, Ash and Babi); brittle materials with pits and circular structures (Seth); large-scale depressions (Hatmehit, Nut and Aten); smooth terrains (Hapi, Imhotep and Anubis), and exposed, more consolidated (‘rock-like’) surfaces (Maftet, Bastet, Serqet, Hathor, Anuket, Khepry, Aker, Atum and Apis). Credit: ESA/Rosetta/MPS for OSIRIS Team MPS/UPD/LAM/IAA/SSO/INTA/UPM/DASP/IDA.

19 regions identified on 67P are separated by distinct geomorphological boundaries. They are grouped according to the type of terrain dominant within each region. Five basic categories of terrain type have been determined: dust-covered (Ma’at, Ash and Babi); brittle materials with pits and circular structures (Seth); large-scale depressions (Hatmehit, Nut and Aten); smooth terrains (Hapi, Imhotep and Anubis), and exposed, more consolidated (‘rock-like’) surfaces (Maftet, Bastet, Serqet, Hathor, Anuket, Khepry, Aker, Atum and Apis). Credit: ESA/Rosetta/MPS for OSIRIS Team MPS/UPD/LAM/IAA/SSO/INTA/UPM/DASP/IDA.

In addition we now have some vital stats on the comet, including its size, density, porosity, rotation, and others.

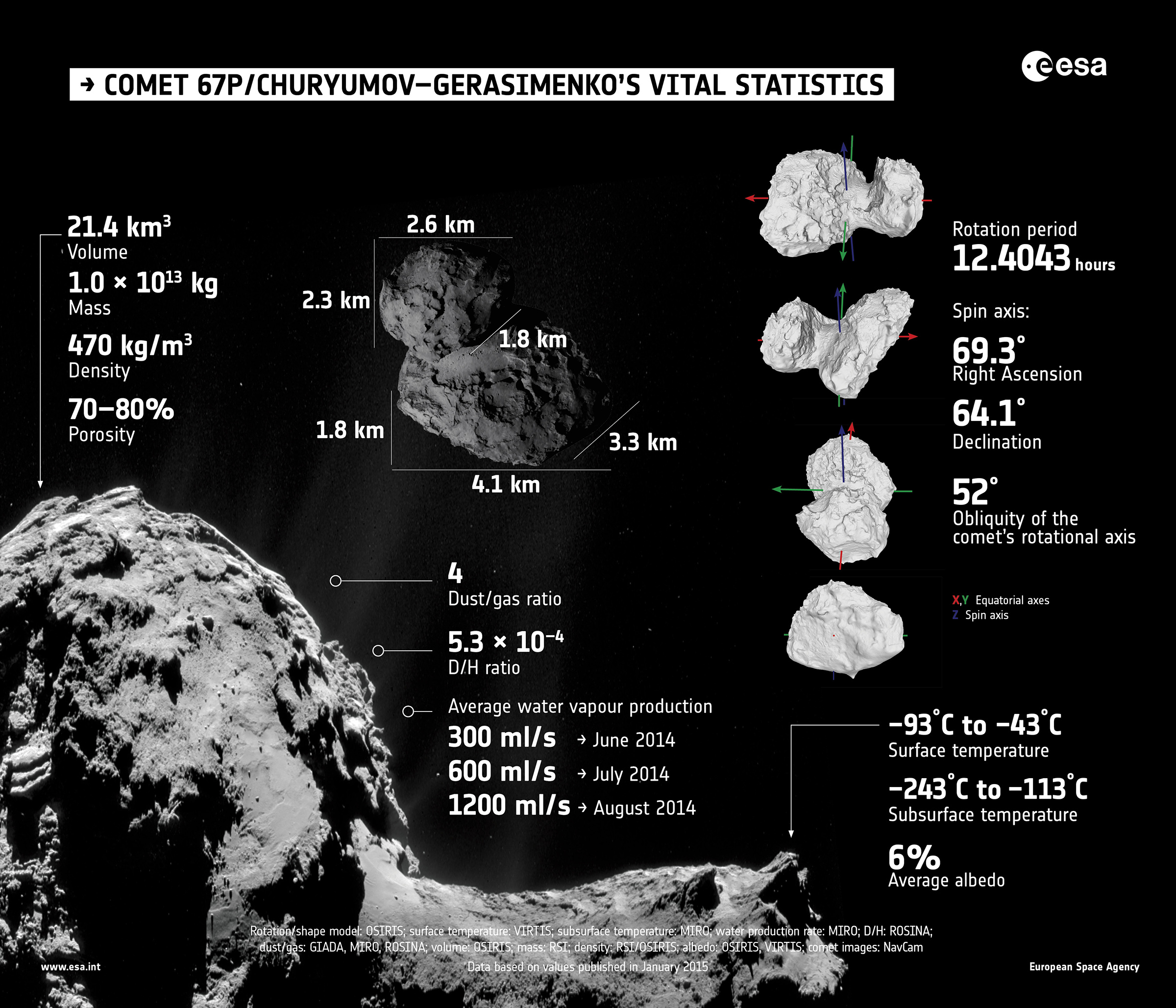

Summary of properties of Comet 67P/Churyumov–Gerasimenko, as determined by Rosetta’s instruments during the first few months of its comet encounter.

Summary of properties of Comet 67P/Churyumov–Gerasimenko, as determined by Rosetta’s instruments during the first few months of its comet encounter. (ESA/Rosetta)

Some of the key facts of comet 67P’s characteristics include:

• The small lobe measures 2.6 × 2.3 × 1.8 km (1.6 x 1.4 x 1.1 miles)
• The large lobe measures 4.1 × 3.3 × 1.8 km (2.5 x 2.0 x 1.1 miles)
• The total volume of the comet is 21.4 km3  (5.13 cubic miles)
• Its mass is 10 billion tons with a density of 470 kg/m3
• T
he comet has a very high porosity of 70–80%
with the interior structure likely comprising weakly bonded ice-dust clumps with small void spaces between them.
• The dusty covering of the comet may be several meters thick in places.

Read about these latest findings on the ESA site here.

“We have already learned a lot in the few months we have been alongside the comet, but as more and more data are collected and analyzed from this close study of the comet we hope to answer many key questions about its origin and evolution.”
– Matt Taylor, ESA’s Rosetta project scientist

Want to see even more? (And yes, there’s more.) Visit ESA’s Space in Images page.

Source: ESA
